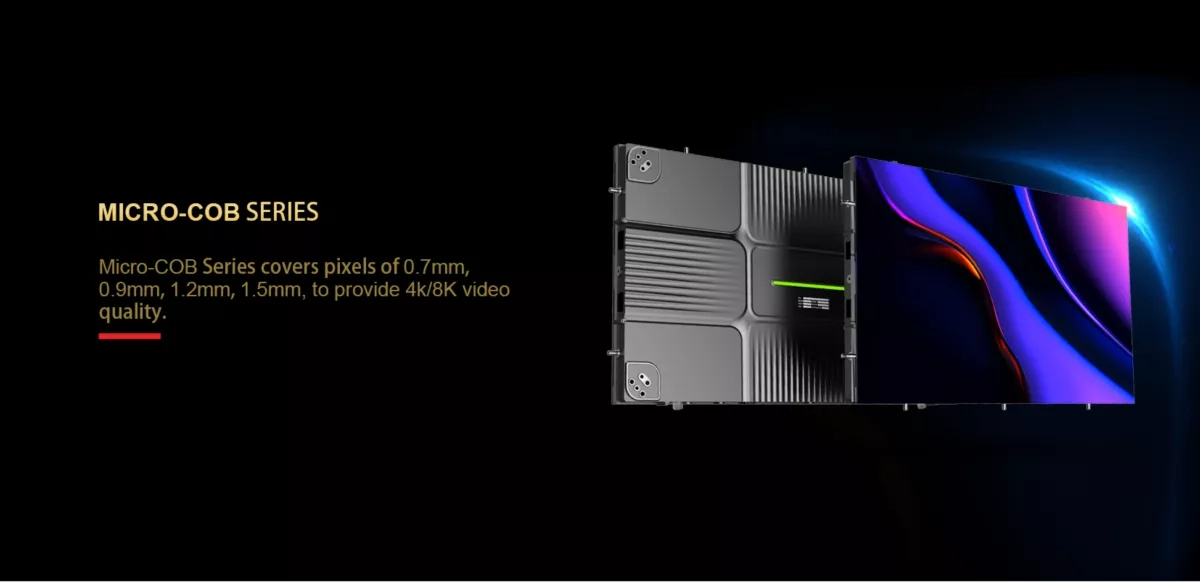

The COB Indoor LED Video Wall is a next-generation high-resolution display solution designed for premium indoor applications. Available in ultra-fine pixel pitches such as P0.9, P1.2, and P1.5, it delivers stunning 4K/8K image quality with exceptional clarity and seamless visual performance.

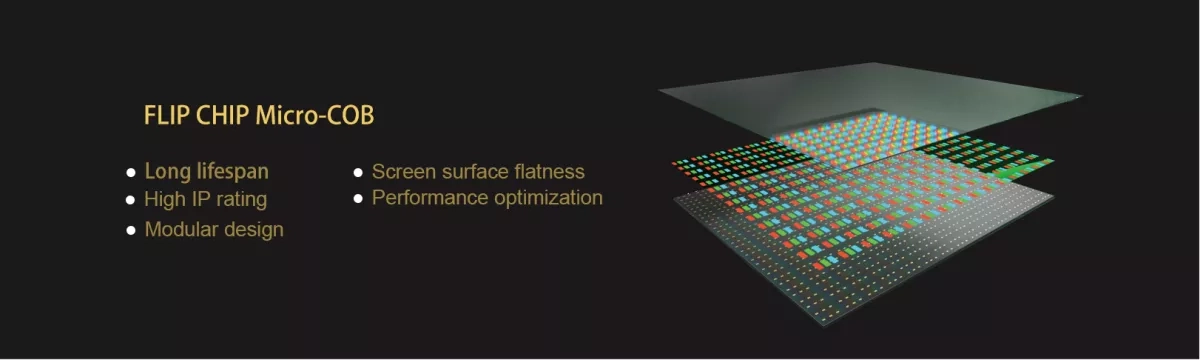

Built with advanced Chip-on-Board (COB) technology, LEDs are directly mounted onto the PCB without traditional encapsulation, enabling a more compact pixel structure, higher reliability, and improved surface protection. This results in smoother visuals, superior color consistency, and enhanced durability for long-term use.
Ideal for control rooms, conference centers, broadcast studios, exhibition halls, and high-end commercial displays, COB LED technology redefines visual precision and display performance.
●Stunning visuals:
Ultra-high resolution and seamless pixel pitch deliver exceptional image quality, perfect for close-up viewing.
●Lightweight and thin:
COB technology eliminates bulky LED packages, making the displays lighter and thinner than traditional LED screens.
●Improved viewing angles:
COB displays offer wider viewing angles than traditional LED screens, ensuring a consistent and high-quality image from various perspectives.
●High contrast ratio:
Superior black levels and brighter whites lead to a more vibrant and realistic image.
●Durable and reliable:
COB technology offers increased durability and reliability compared to traditional LED screens.
|Applications

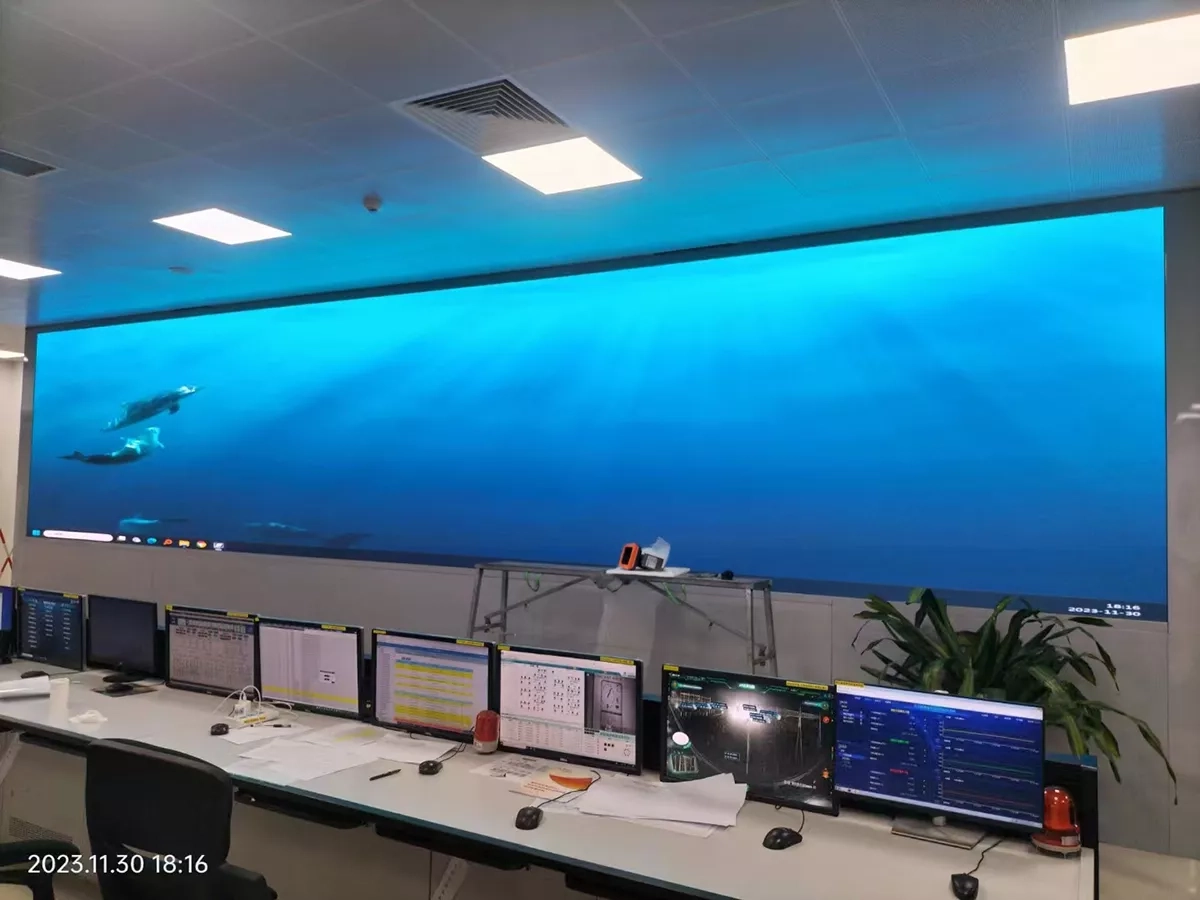

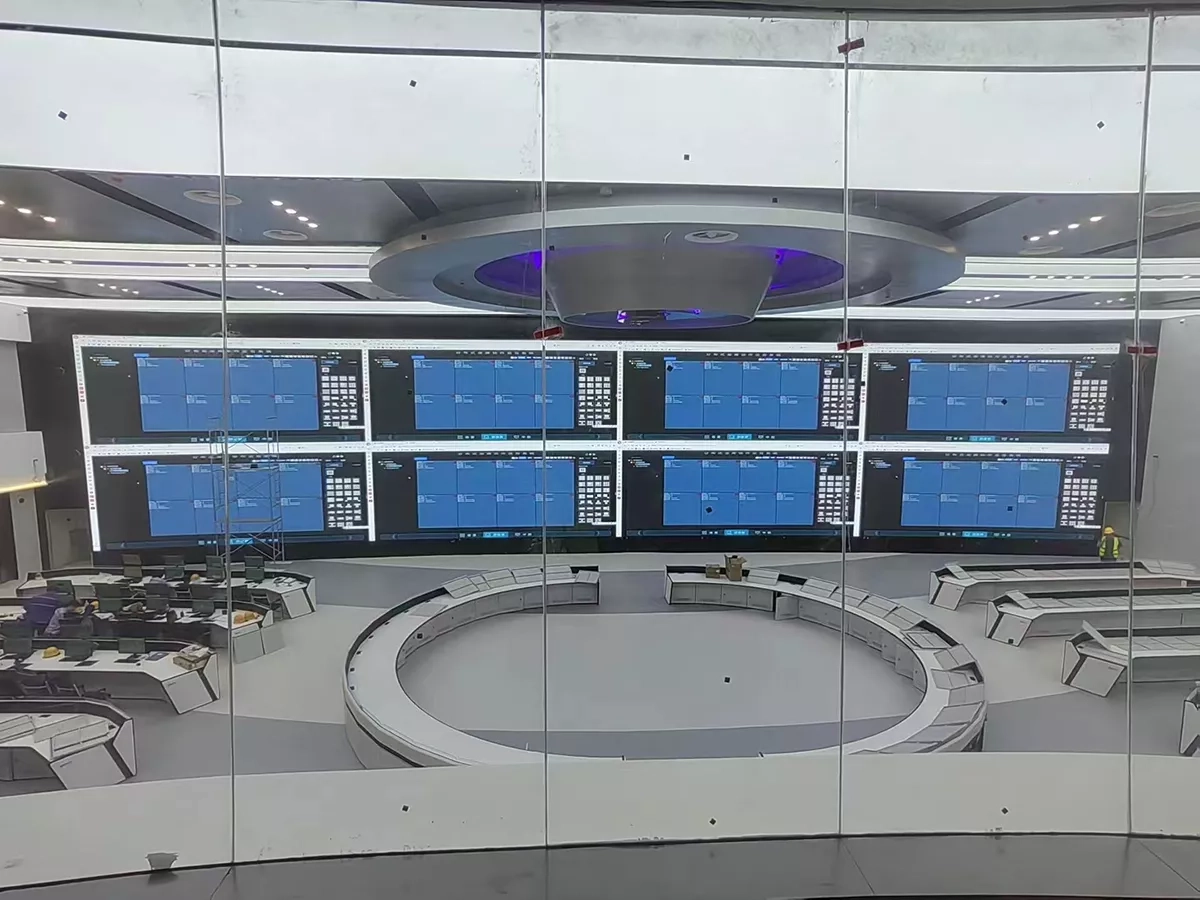

Control rooms and conference rooms:
Delivering critical information with exceptional clarity and accuracy.
Luxury retail and brand displays:
Showcasing products with stunning visuals and captivating customers.
High-end home theaters and entertainment spaces: Creating an immersive and cinematic experience.
Museums and exhibitions:
Bringing artifacts and exhibits to life with detailed visuals.
Corporate lobbies and event spaces: Making a lasting impression with cutting-edge technology.
| Technical Specifications
| Item | P0.93 | P1.25 | P1.56 |
| Pixel pitch | 0.9375mm | 1.25mm | 1.5625mm |
| Pixel density | 1137778 | 640000 | 409600 |
| Module size | 150×168.75mm | ||
| LED package | Flip-chip COB | Flip-chip COB | Flip-chip COB |
| Module resolution(pixels) | 160×180 | 120×135 | 96×108 |
| Cabinet resolution (pixels) | 640×360 | 480×270 | 384×216 |
| Module arrangement per cabinet | 4×2 | ||

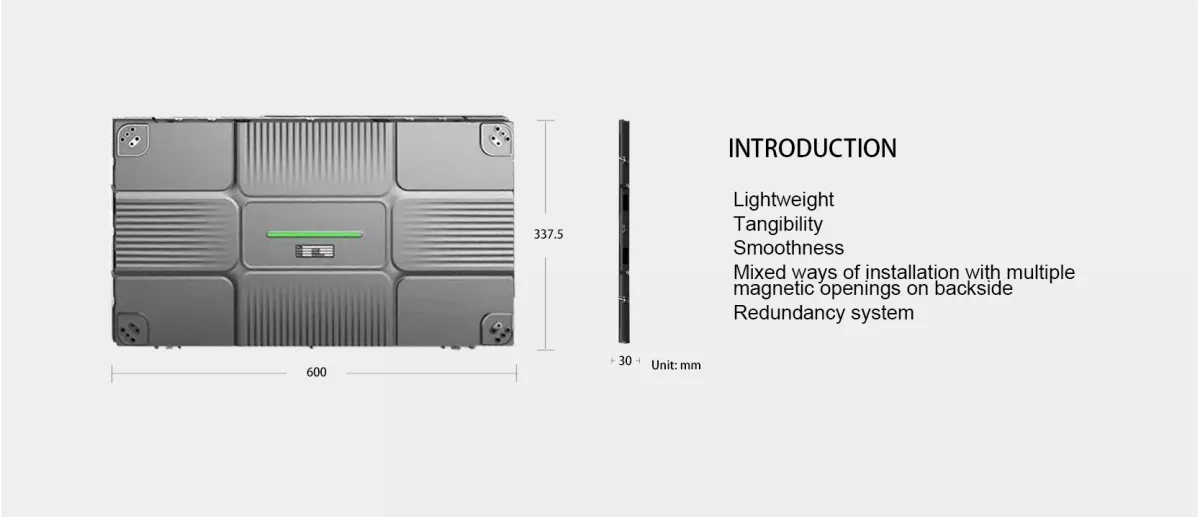

| Cabinet dimension | 600×337.5x32mm | ||
| Cabinet weight (including module) | 5.1kg | ||
| Maintenance | Full front service | ||
| System backup | Support | ||
| White balance brightness | 400-600cd/m2 | ||
| Pixel-level calibration | Support | ||
| Color temperature | 6500K~8500K (adjustable) | ||
| Refresh rate Viewing angle | 3840Hz 120°~140° （V/H） | ||
| Brightness uniformity | ≥98.5% | ||
| Grayscale level | 16bits | ||
| Contrast ratio | 5000:01:00 | ||
| Scanning mode | 1/54 | 1/60 | 1/45 |
| Working voltage (input) | 110-240V, 50/60Hz | ||
| Max./Avg. Power consumption | 500W/m2/165-260W/m2 | ||
| Storage temperature&humidity (RH) | -10°C-60°C&35-75% | ||
| Working temperature&humidity (RH) | -10°C-60°C&35-75% | ||
| IP ratings | IP54 | ||
| Screen temperature rise | ≤5°C | ||

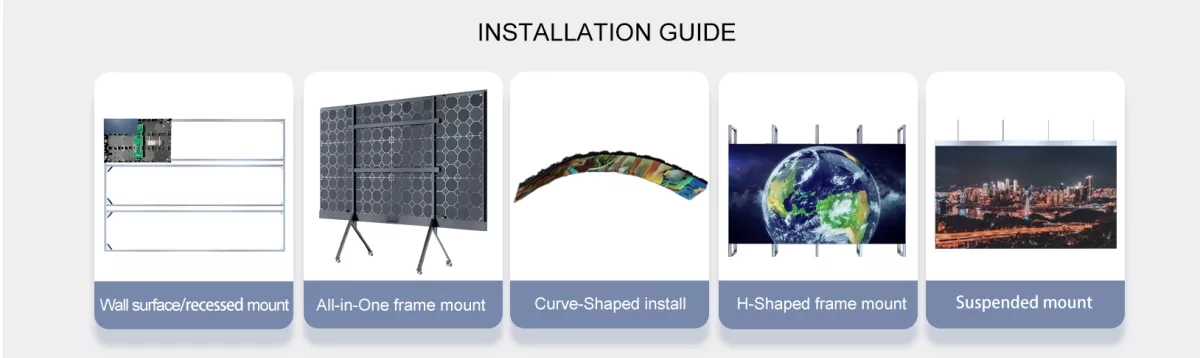

| Installation | On-wall/recessed/pedestal/suspended/stacked install | ||

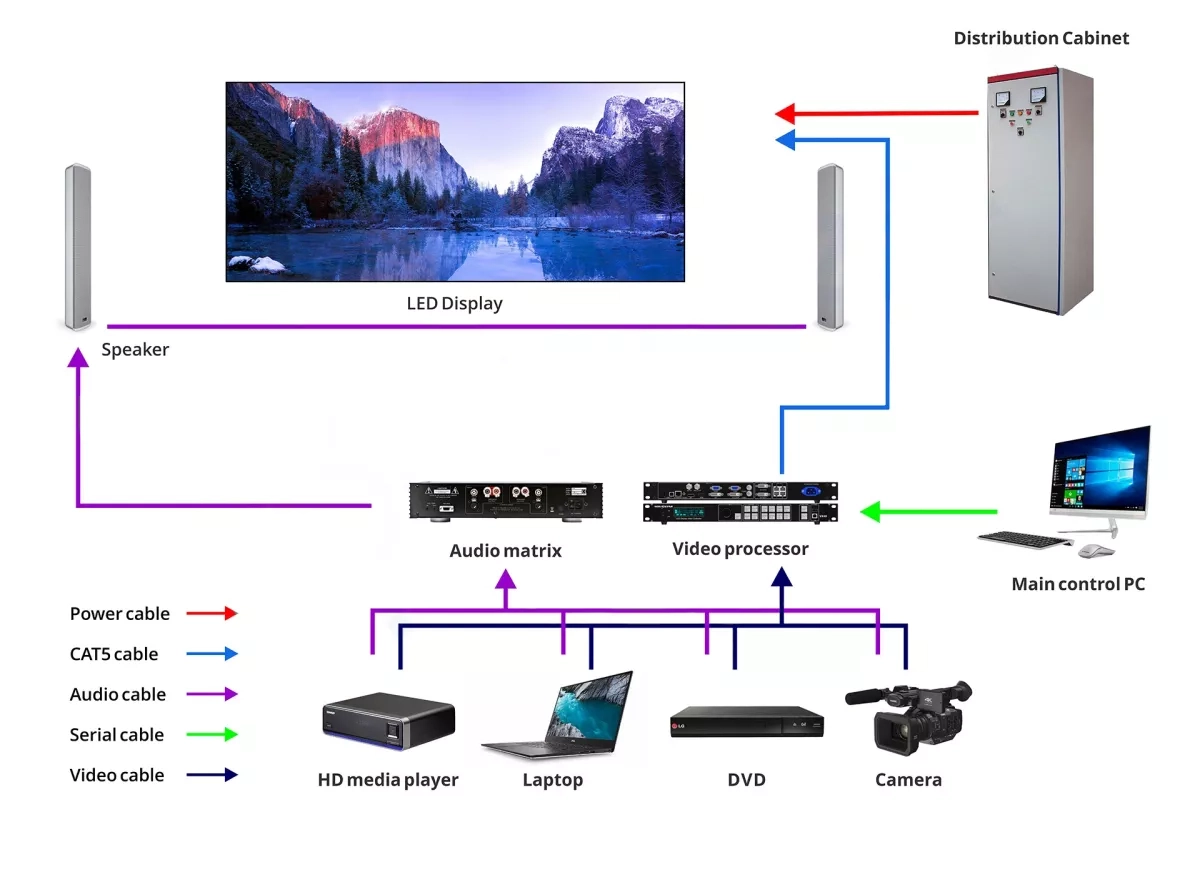

| Signal output | HDMI/VGA/DVI/DP | ||
| Certification | RoHS/FCC/CE | ||
