High-End Customization Expert For LED Displays
We are an LED display manufacturer

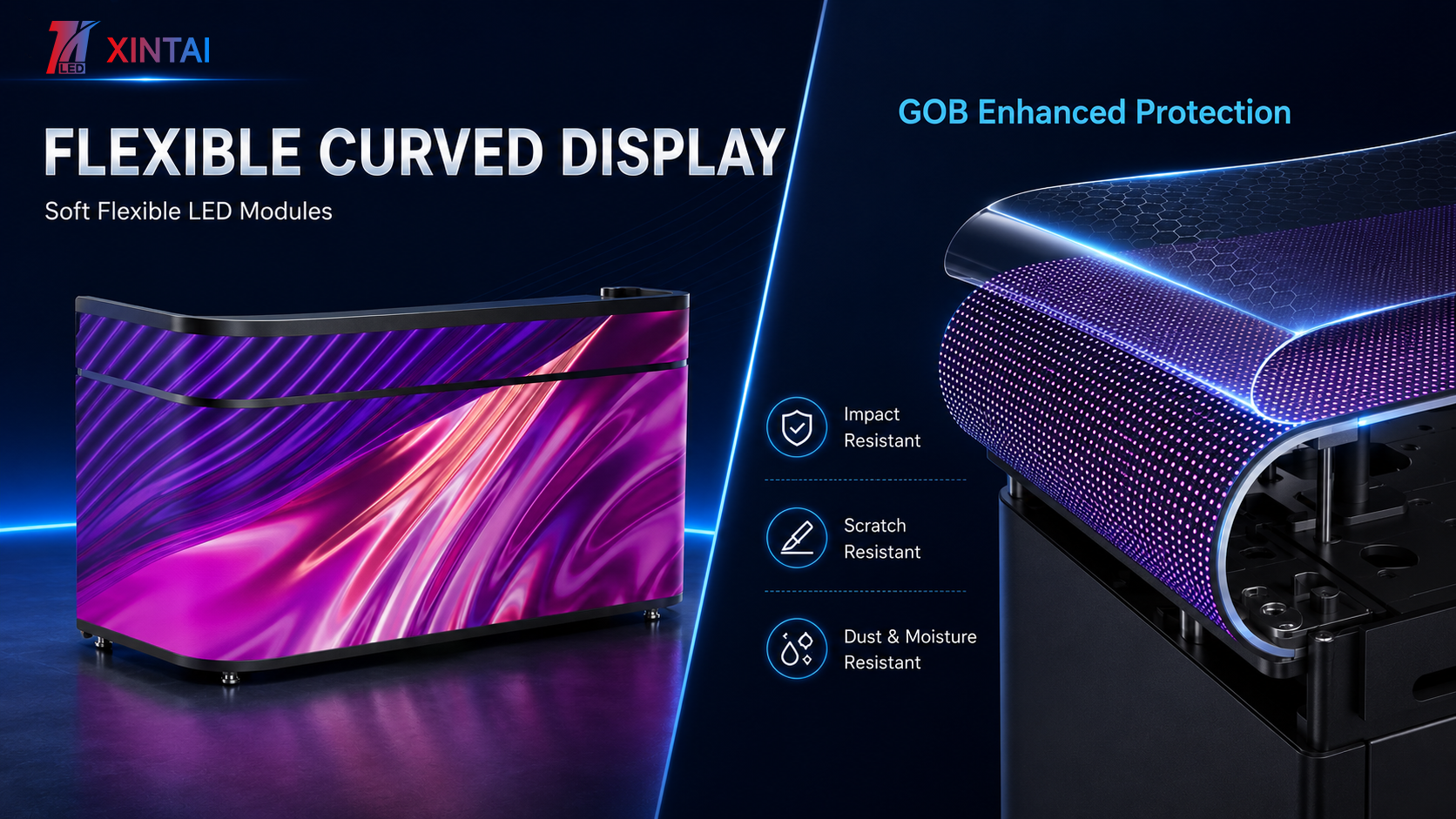

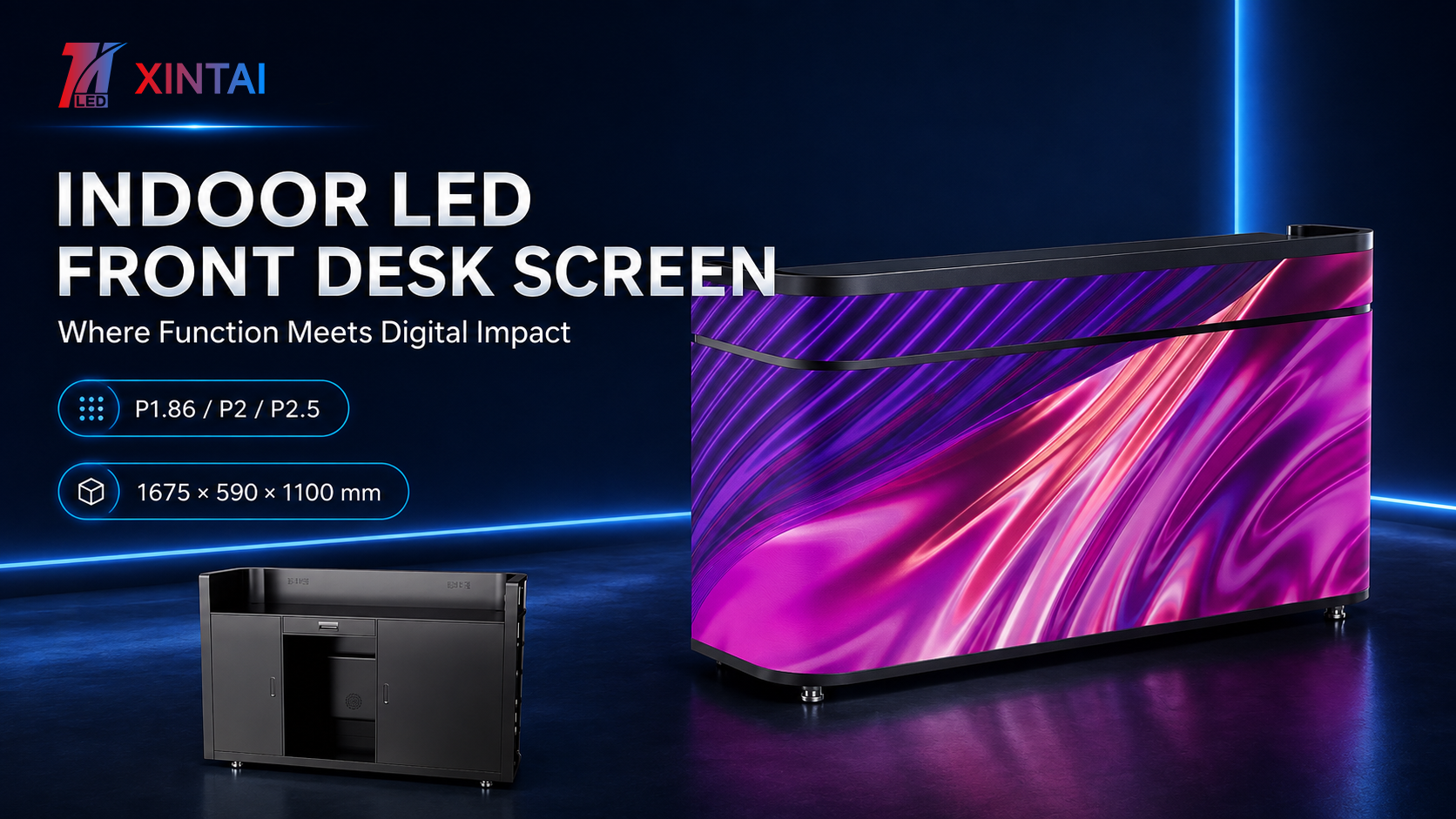

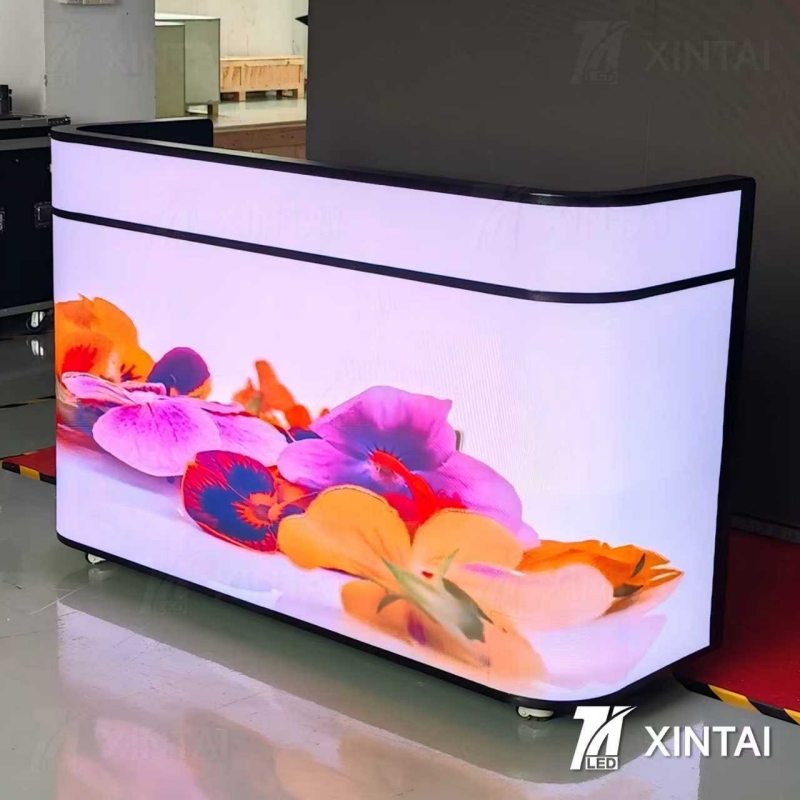

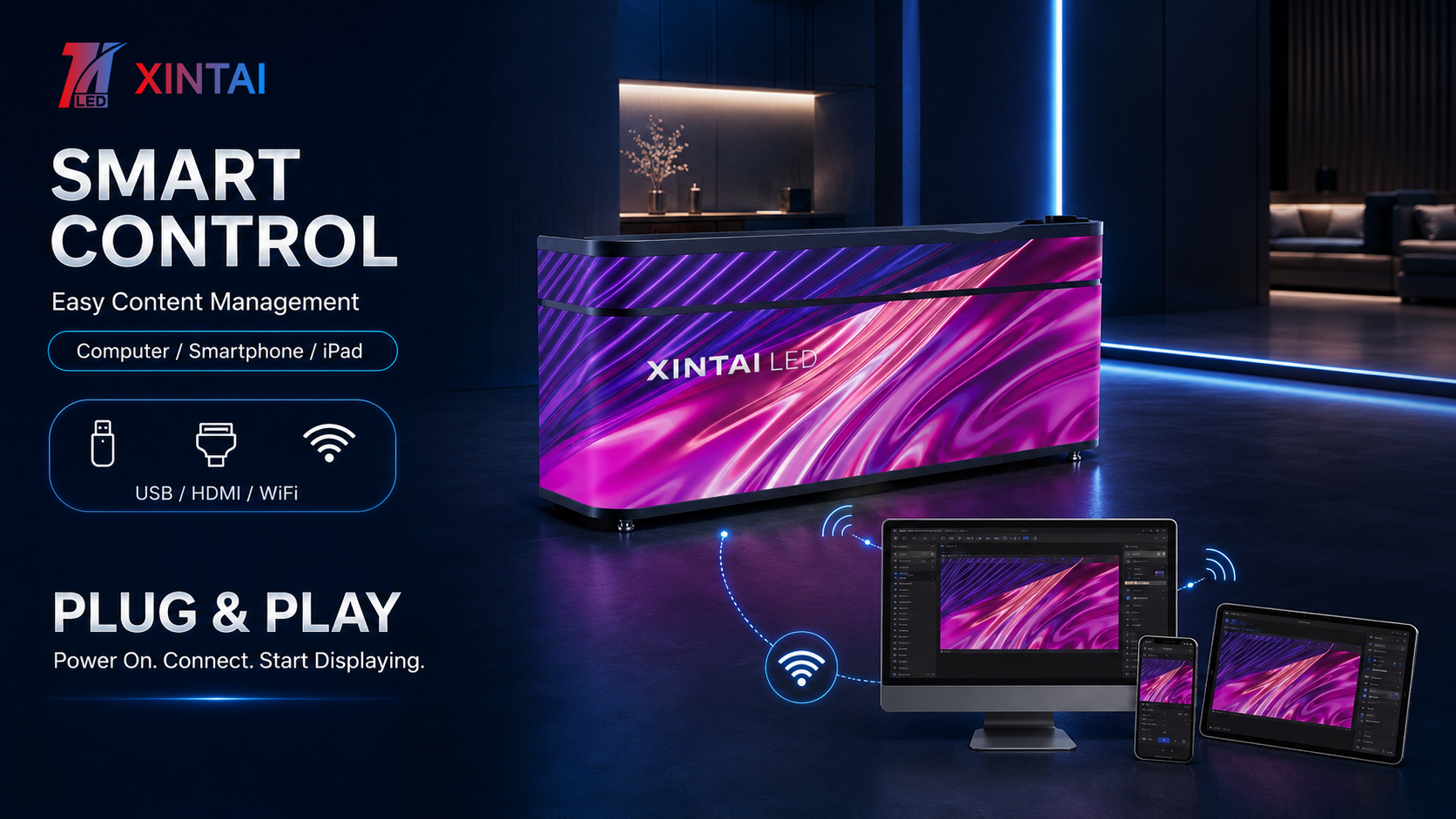

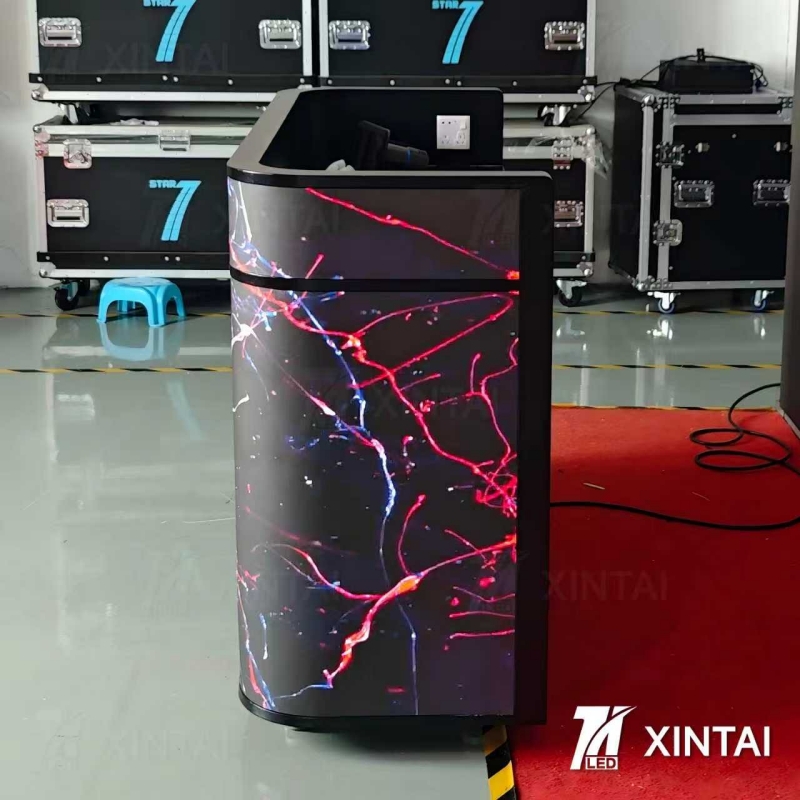

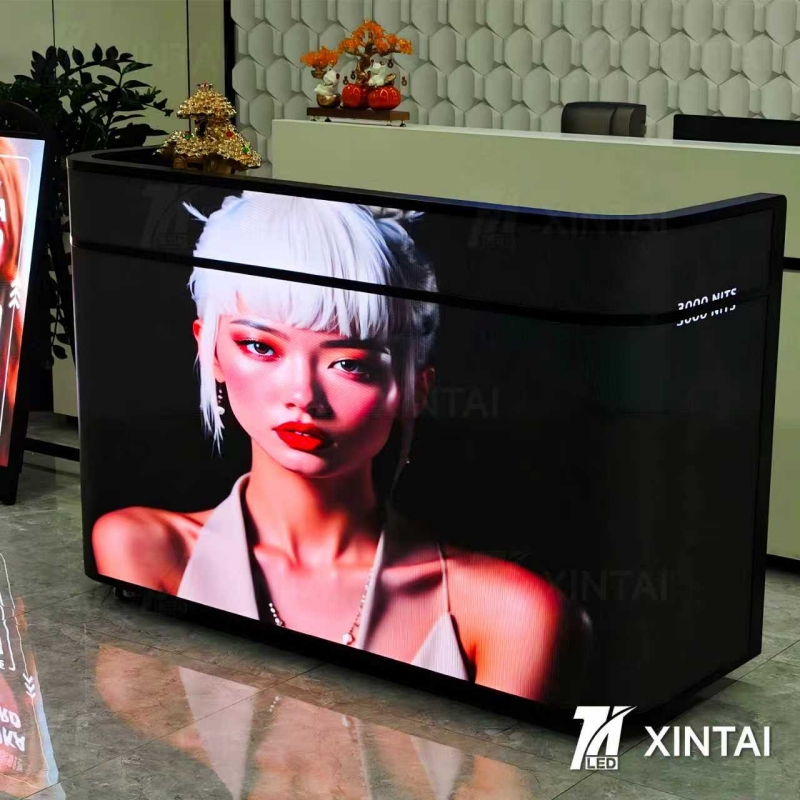

XINTAI Indoor LED Front Desk Screen combines a functional reception counter with a vivid curved LED display. Available in P1.86, P2 and P2.5, it features flexible LED modules, GOB-enhanced protection, plug-and-play operation, smart content control and optional built-in speakers.

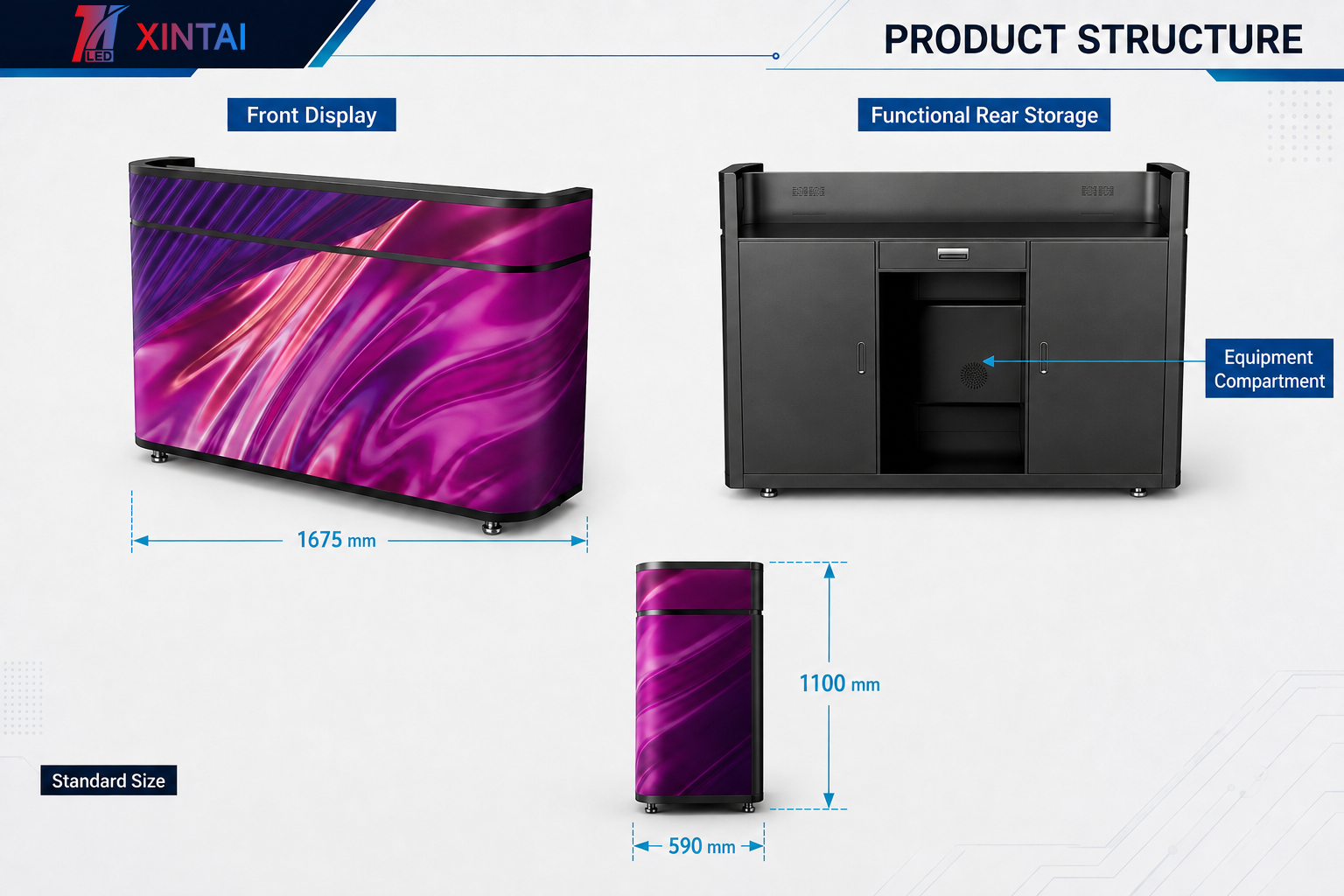

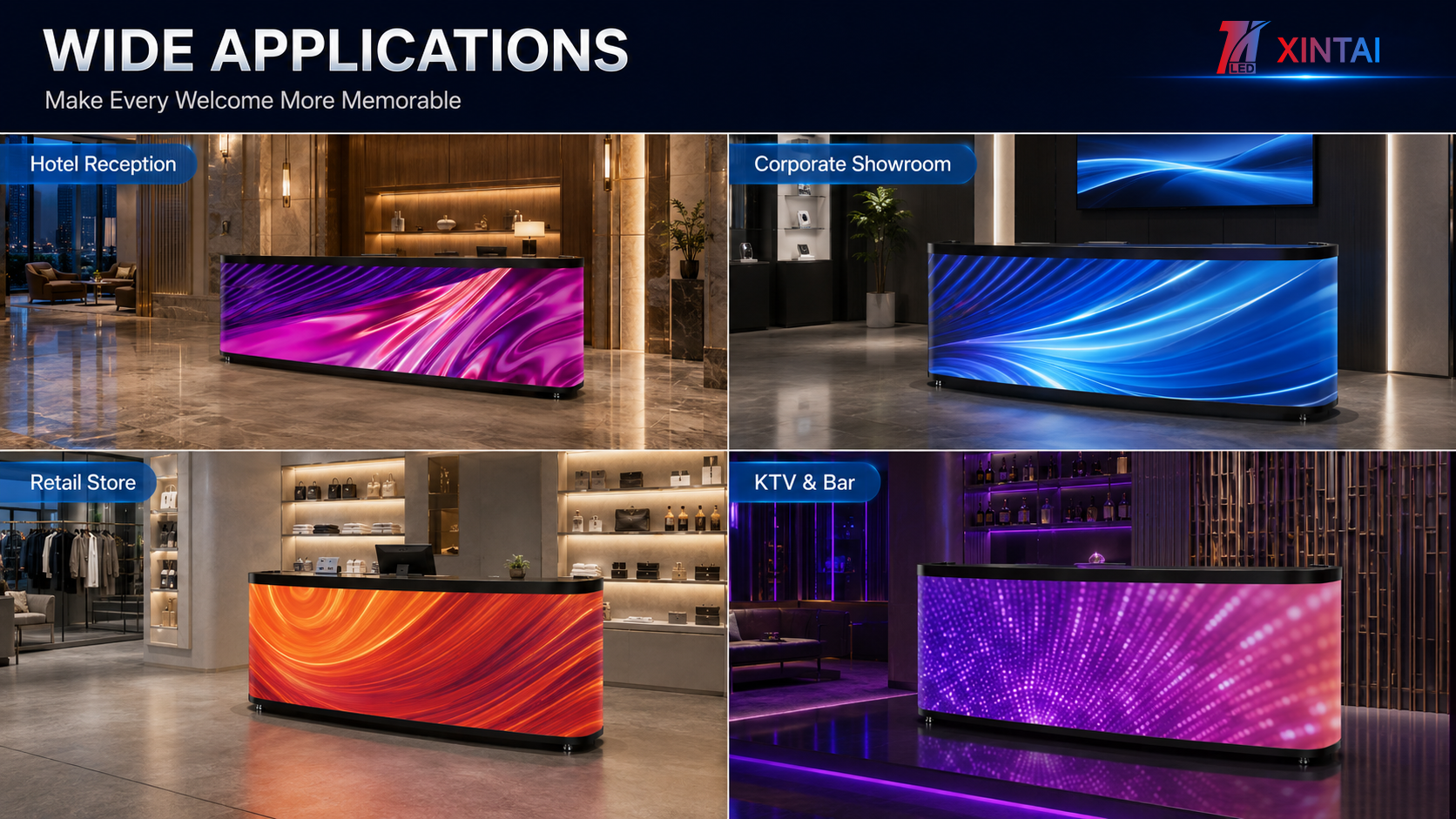

Its fixed standard size of 1675 × 590 × 1100 mm makes it suitable for hotel receptions, corporate offices, showrooms, retail stores, exhibitions, KTVs, bars and other creative indoor commercial spaces.
INDOOR LED FRONT DESK SCREEN Specification | |||
Product Specification Sheet | P1.86 · P2 · P2.5 | |||
| GENERAL INFORMATION | |||
| Specification | P1.86 | P2 | P2.5 |
| Product Name | Indoor LED Front Desk Screen | Indoor LED Front Desk Screen | Indoor LED Front Desk Screen |
| Product Model | P1.86 | P2 | P2.5 |
| Application Environment | Indoor | Indoor | Indoor |
| Overall Product Dimensions (L × W × H) | 1675 × 590 × 1000 mm | 1675 × 590 × 1000 mm | 1675 × 590 × 1000 mm |
| Active LED Display Size (L × H) | 2560 × (800 + 160) mm | 2560 × (800 + 160) mm | 2560 × (800 + 160) mm |
| Display Area | 2.46 m² | 2.46 m² | 2.46 m² |
| Display Resolution (L × H) | 1376 × 516 pixels | 1280 × 480 pixels | 1024 × 384 pixels |
| Screen Net Weight | Approx. 120 kg | Approx. 120 kg | Approx. 120 kg |
| PIXEL & MODULE | |||
| Pixel Pitch | 1.86 mm | 2.0 mm | 2.5 mm |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1515 | SMD1515 | SMD2020 |
| Primary Colors | RGB | RGB | RGB |
| Module Type | Flexible LED Module | Flexible LED Module | Flexible LED Module |
| Module Protection | GOB Enhanced Protection | GOB Enhanced Protection | GOB Enhanced Protection |
| ELECTRICAL PARAMETERS | |||
| Input Voltage | AC 100–240 V ±10%, 50/60 Hz | AC 100–240 V ±10%, 50/60 Hz | AC 100–240 V ±10%, 50/60 Hz |
| Switching Power Supply | 5 V / 40 A / 200 W | 5 V / 40 A / 200 W | 5 V / 40 A / 200 W |
| Ground Leakage Current | < 3 mA | < 3 mA | < 3 mA |
| Maximum Power Consumption | ≤ 1600 W | ≤ 1600 W | ≤ 1600 W |
| Average Power Consumption | 560 W | 560 W | 560 W |
| CONTROL SYSTEM | |||
| Control Mode | Synchronous / Asynchronous | Synchronous / Asynchronous | Synchronous / Asynchronous |
| Control System | NovaStar/Huidu/Colorlight | NovaStar/Huidu/Colorlight | NovaStar/Huidu/Colorlight |
| Operating System | PC / Smartphone / iPad | PC / Smartphone / iPad | PC / Smartphone / iPad |
| Media Player Software | Depends on the selected control system brand | Depends on the selected control system brand | Depends on the selected control system brand |
| Audio System | Built-In Speakers | Built-In Speakers | Built-In Speakers |
| DISPLAY PERFORMANCE | |||
| LED Driving Method | Constant Current Drive | Constant Current Drive | Constant Current Drive |
| Refresh Rate | ≥ 3840 Hz | ≥ 3840 Hz | ≥ 3840 Hz |
| Display Colors | ≥ 16.7 Million | ≥ 16.7 Million | ≥ 16.7 Million |
| Grayscale | ≥ 14-bit | ≥ 14-bit | ≥ 14-bit |
| Brightness | ≥ 600 cd/m² | ≥ 600 cd/m² | ≥ 600 cd/m² |
| Frame Rate | 60 fps | 60 fps | 60 fps |
| Color Temperature | 8500 K (Customizable) | 8500 K (Customizable) | 8500 K (Customizable) |
| Pixel Failure Rate | ≤ 1/10,000, Discretely Distributed | ≤ 1/10,000, Discretely Distributed | ≤ 1/10,000, Discretely Distributed |
| Recommended Viewing Distance | 1–15 m | 2–20m | 2.5–30 m |
| Viewing Angle | 160° H / 160° V | 160° H / 160° V | 160° H / 160° V |
| Flatness | < 1 mm | < 1 mm | < 1 mm |
| Brightness Uniformity | ≥ 95% | ≥ 95% | ≥ 95% |
| ENVIRONMENT & RELIABILITY | |||
| Operating Temperature | −20°C to +60°C | −20°C to +60°C | −20°C to +60°C |
| Operating Humidity | 10%–95% RH, Non-Condensing | 10%–95% RH, Non-Condensing | 10%–95% RH, Non-Condensing |
| Ingress Protection Rating | IP54 | IP54 | IP54 |
| LED Service Life | > 100,000 Hours | > 100,000 Hours | > 100,000 Hours |
| Mean Time Between Failures (MTBF) | ≥ 5,000 Hours | ≥ 5,000 Hours | ≥ 5,000 Hours |
| PACKING & NOTES | |||
| Packed Weight | Approx. 165 kg Including Wooden Case | Approx. 165 kg Including Wooden Case | Approx. 165 kg Including Wooden Case |
| Installation | Plug and Play | Plug and Play | Plug and Play |
| Standard Package Dimensions (L × W × H) | 1740 × 650 × 1250 mm | 1740 × 650 × 1250 mm | 1740 × 650 × 1250 mm |
| Note | Specifications are subject to the final confirmed configuration. | Specifications are subject to the final confirmed configuration. | Specifications are subject to the final confirmed configuration. |
Related Products

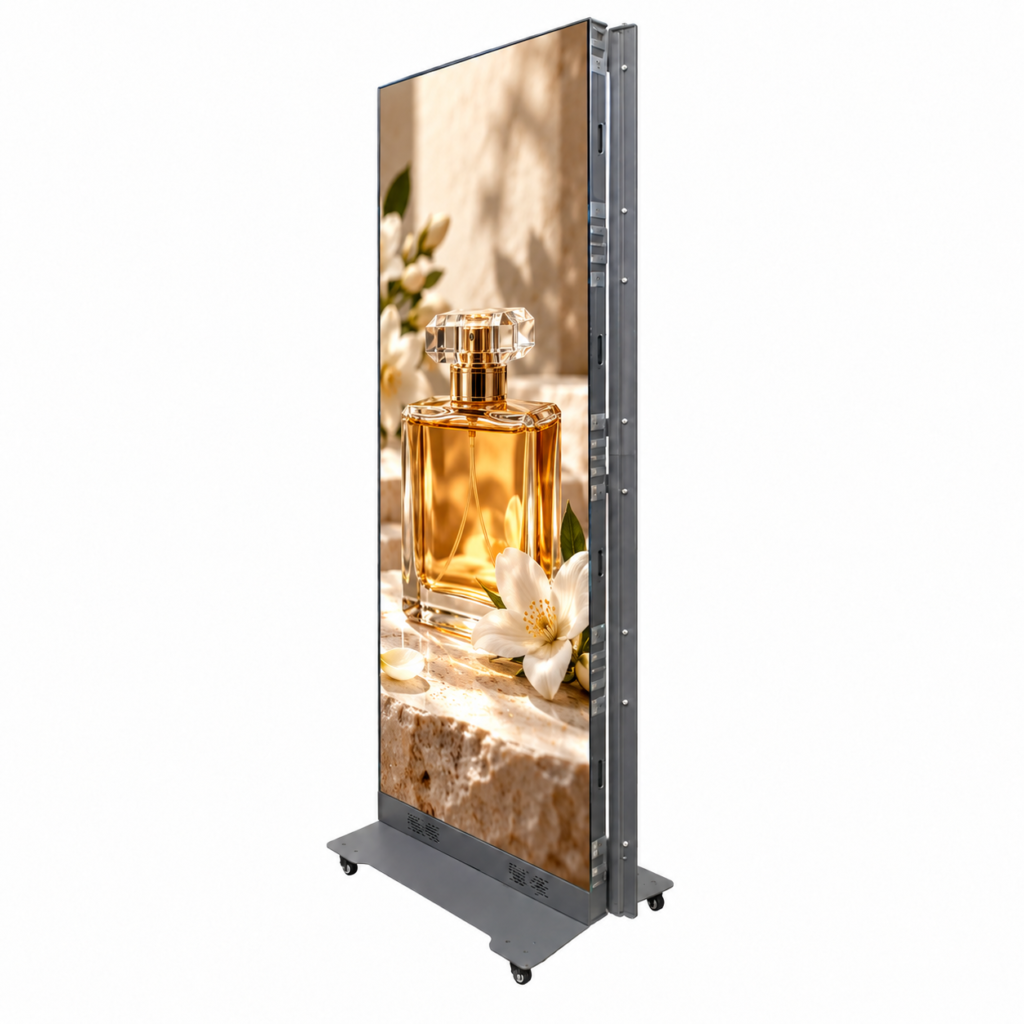

640x1920mm Indoor Foldable LED Poster Display with Flight Case
