12 kg/m² Outdoor Carbon Fiber LED Display for Facade Installation

Product Description

Lightweight Outdoor Carbon Fiber Fixed LED Display
P3.91, P5.2 and P10.4 Product Specifications

Parameter	P3.91	P5.2	P10.4
Pixel Pitch	3.91 mm	5.2 mm	10.4 mm
Module Size	250 × 250 mm	250 × 250 mm	250 × 250 mm
Module Resolution	64 × 64 px	48 × 48 px	24 × 24 px
Pixel Density	65,536 px/m²	36,864 px/m²	9,216 px/m²
Available Cabinet Sizes	1,000 × 1,000 mm 1,000 × 750 mm 1,000 × 500 mm	1,000 × 1,000 mm 1,000 × 750 mm 1,000 × 500 mm	1,000 × 1,000 mm 1,000 × 750 mm 1,000 × 500 mm
Cabinet Material	Carbon Fiber	Carbon Fiber	Carbon Fiber

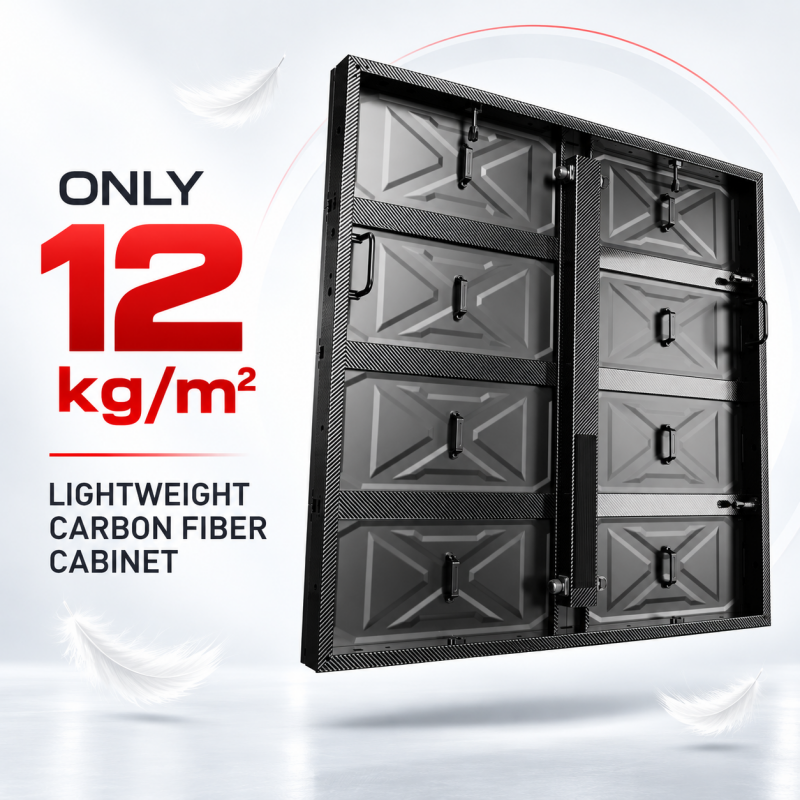

Cabinet Weight	Approx. 12 kg/m²	Approx. 12 kg/m²	Approx. 12 kg/m²

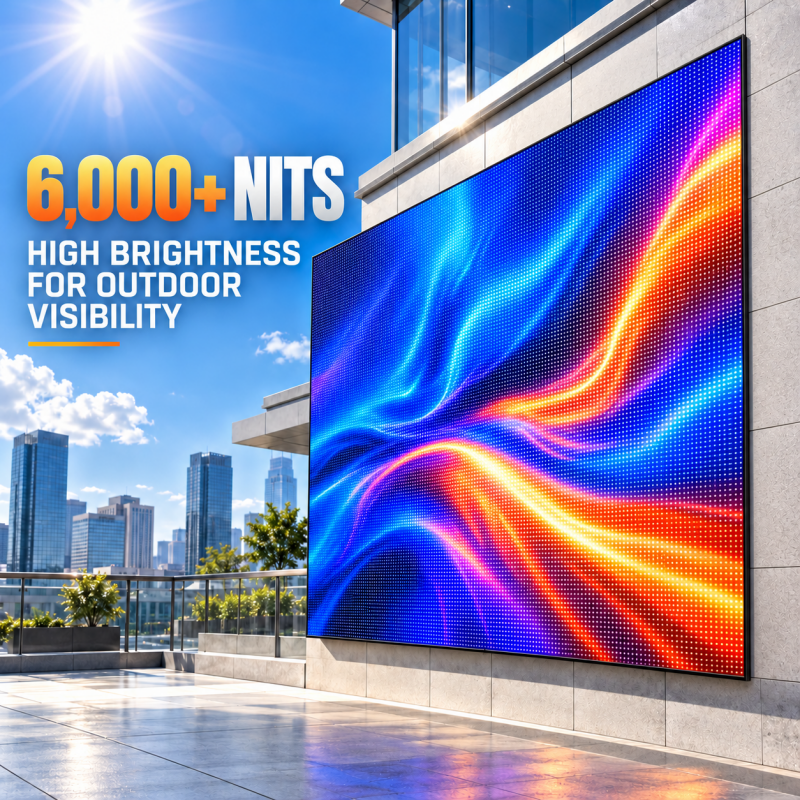

Brightness	6,000–6,500 nits	6,000–6,500 nits	6,000–6,500 nits
Refresh Rate	7,680 Hz	7,680 Hz	7,680 Hz
Max. Power Consumption	520 W/m² at 6,000 nits	520 W/m² at 6,000 nits	680 W/m² at 8,000 nits
Average Power Consumption	230 W/m²	230 W/m²	300 W/m²

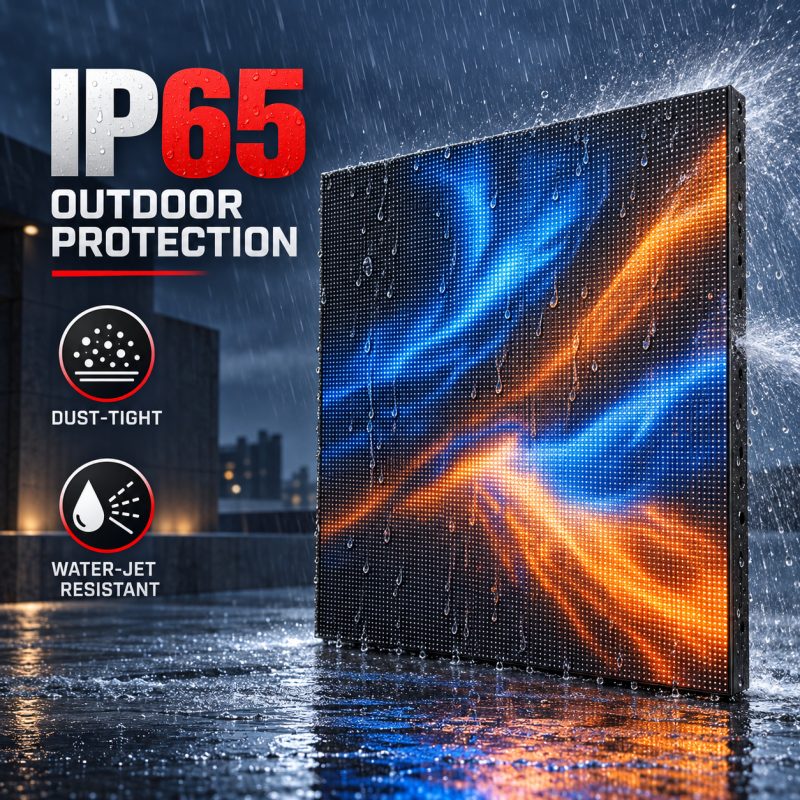

Protection Rating	IP65	IP65	IP65

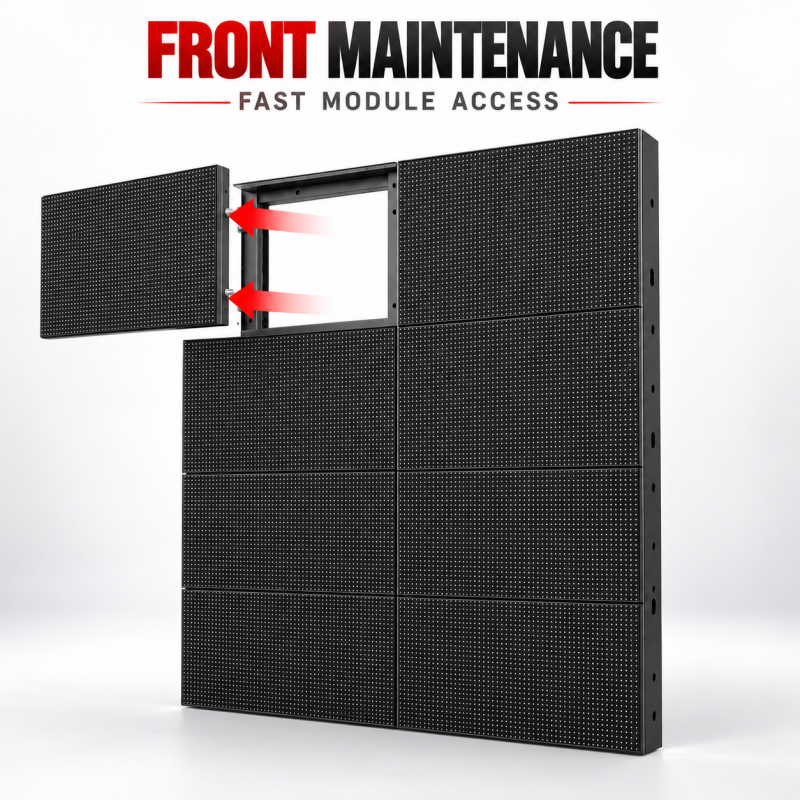

Maintenance	Front Maintenance	Front Maintenance	Front Maintenance
Energy-Saving Technology	Common Cathode (Standard)	Common Cathode (Standard)	Common Cathode (Standard)
RGB Supply Voltage	R: 3.2V; G/B: 4.2V	R: 3.2V; G/B: 4.2V	R: 3.2V; G/B: 4.2V

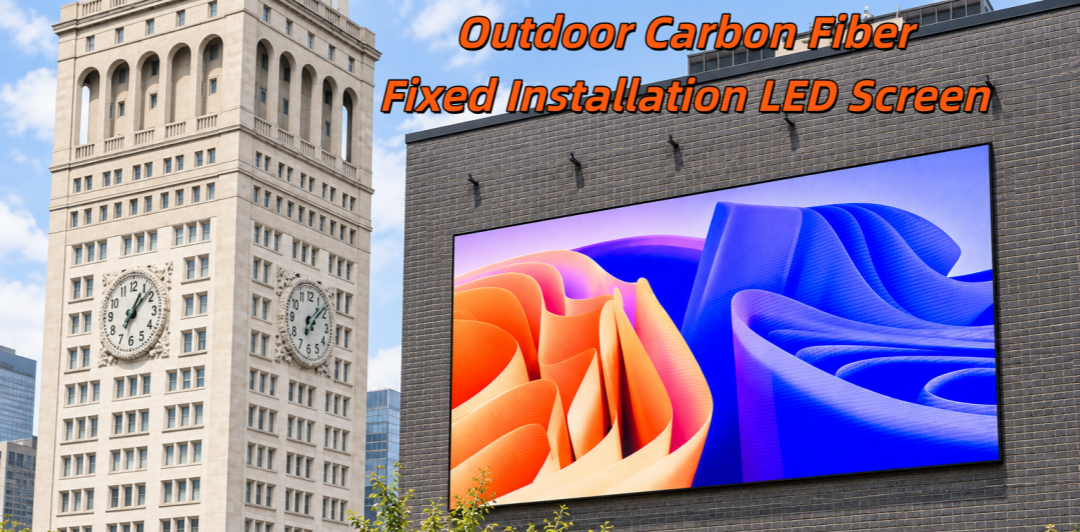

Application	Outdoor Fixed Installation	Outdoor Fixed Installation	Outdoor Fixed Installation

Looking for a lightweight outdoor LED display that reduces structural load without compromising brightness or performance?

Contact XINTAI to receive a customized solution based on your installation dimensions, viewing distance, weight limit and project environment.
